MSDP-602
MSDP-602 이미지 1

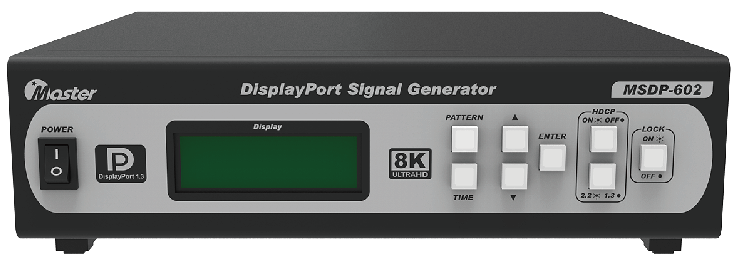

MSDP-602 이미지 2

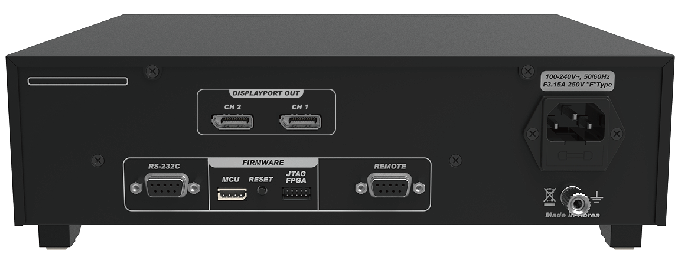

MSDP-602 이미지 3

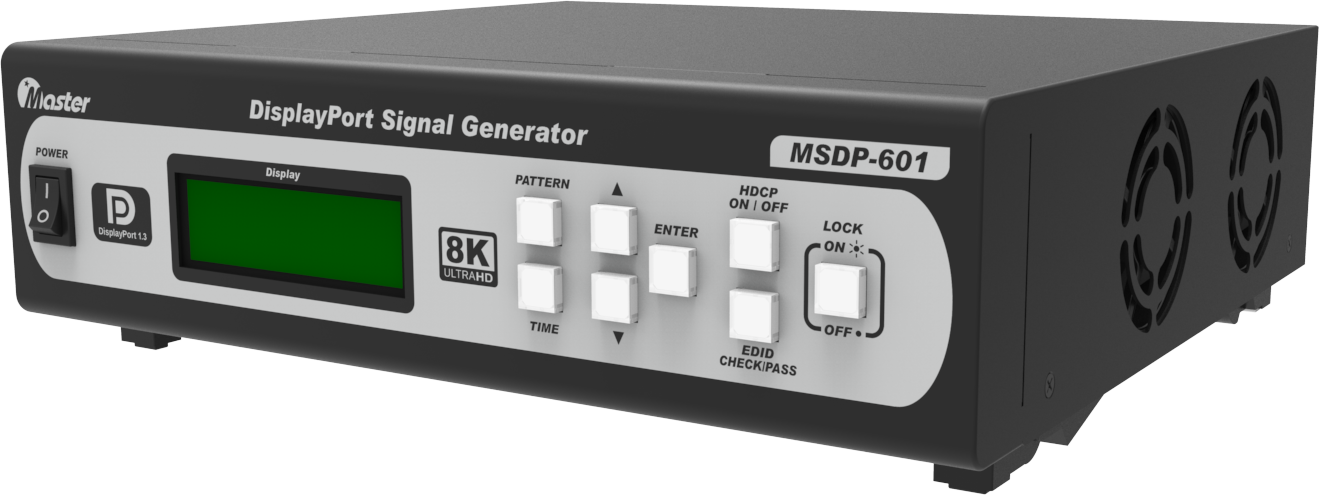

MSDP-602 이미지 4

Overview

The MSDP-602 is a professional DisplayPort signal generator developed to verify the performance of monitors and TVs that support the DisplayPort interface. It provides the diverse testing environments required for the R&D, production, quality control (QC), and reliability evaluation of DisplayPort-based display products, and is designed to effectively verify product performance and compatibility through accurate, stable signal output.


The MSDP-602 supports the DisplayPort 1.3 standard and can output ultra-high-resolution video signals of up to 7680x4320@30Hz (8K UHD), making it well-suited for the development and inspection of the latest high-resolution display products. Supporting a wide range of resolutions and timings, it enables accurate performance evaluation of various DisplayPort-equipped video devices, including monitors, TVs, and industrial displays.


Built on stable signal generation technology, the MSDP-602 delivers consistent performance even during extended, continuous operation, and its accurate reproduction of signal quality creates a reliable testing environment spanning from the development stage through mass production and final shipment inspection. It also features a user interface that enables easy and convenient equipment operation, allowing a variety of test conditions to be configured and managed with ease.



The MSDP-602 is widely used across various industries, including display manufacturers, research institutes, testing and certification organizations, and production lines, serving as a key inspection instrument that contributes to improving the quality and development efficiency of DisplayPort-based products.



Product Features


  • Supports DisplayPort 1.3 Ver. (HBR3)
  • Resolutions: 8K (7680x4320@30Hz), 5K (5120x2160@60Hz), 4K (3840x2160@120Hz)
  • Supports various patterns and timings (VESA/EIA-861F)
  • Supports HDCP 1.3 / 2.2
  • Button lock function
  • RS-232C communication

Specification

SPECIFICATIONS
Video Output Output Port DISPLAYPORT 2 Ports
Video Output DISPLAYPORT 1.3Ver (HBR3)
Pixel Clock HBR3, 1188MHz
Resolution 8K (7680x4320@30Hz)
5K (5120x2160@60Hz)
4K (3840x2160@120Hz)
CEA-861A and VESA Timing
HDCP Support HDCP 2.2 & 1.4
Output Format RGB444, YCbCr444, YCbCr422, YCbCr420 (8, 10, 12bit)
7680x4320@30Hz only 8bit
Audio Output Number of Channel 2 Channels
Sample Rate 48KHz
Waveform Sine Wave
Frequency Range 20Hz to 24KHz / 5Hz step
Level Range 0dB to -110dB / 0.5dB step
Special Control Mode Fix, Sweep, Swap, Mute
Data Storage Timing 1~79 VESA timing (full range)
101~195 CEA 861G timing (Limit range)
201~248 color format / depth test timing (full range)
Pattern 1~140
General Specification Power AC 100~240V, 50/60Hz
Operating Environment Temperature : 0°C ~ 40°C
Humidity : Up to 80% RH (Non-Condensing)
Dimensions (WxDxH) 285 x 262 x 75 (mm)
Weight 2.5 Kg
Specifications and design are subject to change without prior notice.
